標準產品分類

氣液旋轉接頭
MAPH100系列 (1進1出 氣/液+電一體滑環)
  • · MAPH100 氣/液+電 旋轉接頭，可通M5；G1/8；G1/4；G3/8；G1/2接頭，4~12mm大小管徑
  • · 且可以混合功率動力線、信號線、以太網、USB、工業總線、控制線、電磁閥、感應線等
  • · 標準為法蘭安裝形式，可定制氣液旋轉接頭，氣液電滑環，1進1出旋轉接頭等
  • · 能通過的介質有: 壓縮空氣、氫氣、氮?dú)�、化學混合氣體、蒸汽、冷卻水、熱水、熱油、石油、硫酸、飲料等

典型應用：

工業設備、工業展臺、電氣測試設備、醫療設備、機器人、測試儀器、轉臺、自動化設備等；

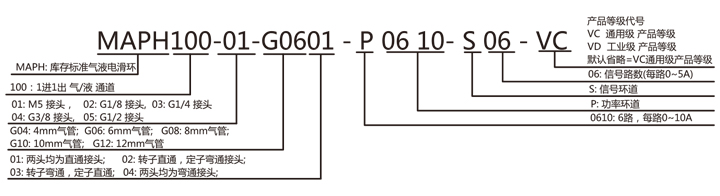

型號訂購說明：

氣液旋轉接頭等級選型表
產品等級代號最高轉速工作壽命密封件
VC（通用級）100RPM1000萬轉國內知名品牌密封件
VD（工業級）300RPM3000萬轉進口密封件

技術規格參數
旋轉接頭部分技術指標機械技術指標
參數數值參數數值
通道數1進1出工作壽命參考產品選型等級
最大壓力10MPa (可定制高壓)，真空 0.01torr額定轉速參考產品選型等級
扭矩與接口尺寸相關，詳細咨詢技術工作溫度-30℃~80℃
電氣技術指標工作濕度0~85% RH
參數數值接觸材料貴金屬
功率信號殼體材料鋁合金
額定電壓0~440VAC/VDC0~440VAC/VDC防護等級IP51
絕緣電阻≥1000MΩ/500VDC≥1000MΩ/500VDC
導線規格AWG16#鍍錫鐵氟龍AWG22#鍍錫鐵氟龍
導線長度標準長度300mm（可據要求調整）
絕緣強度500VAC@50Hz，60s
動態電阻變化值<0.01Ω



MAPH100-01, MAPH100-02氣液電一體滑環選型表
1）XX=01 接口尺寸M5    2）XX=02 接口尺寸G1/8
型號氣(液)通道10A信號/5A長度 L(mm)型號氣(液)通道10A信號/5A長度 L(mm)
MAPH100-XX-S061進1出0638MAPH100-XX-P0810-S101進1出81071.6
MAPH100-XX-P0210-S041進1出2438MAPH100-XX-P1010-S081進1出10871.6
MAPH100-XX-P0410-S021進1出4238MAPH100-XX-P1210-S061進1出12671.6
MAPH100-XX-P06101進1出6038MAPH100-XX-P1410-S041進1出14471.6
MAPH100-XX-S121進1出12054.8MAPH100-XX-P1610-S021進1出16271.6
MAPH100-XX-P0210-S101進1出21054.8MAPH100-XX-S241進1出02488.4
MAPH100-XX-P0310-S091進1出3954.8MAPH100-XX-P0410-S201進1出42088.4
MAPH100-XX-P0610-S061進1出6654.8MAPH100-XX-P0610-S181進1出61888.4
MAPH100-XX-P0810-S041進1出8454.8MAPH100-XX-P1210-S121進1出121288.4
MAPH100-XX-P1010-S021進1出10254.8MAPH100-XX-S301進1出030105.2
MAPH100-XX-P12101進1出12054.8MAPH100-XX-P0610-S241進1出624105.2
MAPH100-XX-S181進1出01871.6MAPH100-XX-S361進1出036125
MAPH100-XX-P0210-S161進1出21671.6MAPH100-XX-S421進1出042141.8
MAPH100-XX-P0410-S141進1出41471.6MAPH100-XX-S481進1出048158.6
MAPH100-XX-P0610-S121進1出61271.6

注：10A和信號(5A) 可以任意組合，最大可到96路，詳細請咨詢客服。可在標準產品上進行非標定制，請咨詢客服。

MAPH100-03, MAPH100-04, MAPH100-05氣液電一體滑環選型表
1）XX=03 接口尺寸G1/4
2）XX=04 接口尺寸G3/8
3）XX=05 接口尺寸G1/2
型號氣(液)通道10A信號/5A長度 L(mm)型號氣(液)通道10A信號/5A長度 L(mm)
MAPH100-XX-S061進1出0645.2MAPH100-XX-P1210-S181進1出1218126.8
MAPH100-XX-P0210-S041進1出2445.2MAPH100-XX-P1810-S121進1出1812126.8
MAPH100-XX-P0410-S021進1出4245.2MAPH100-XX-P2410-S061進1出246126.8
MAPH100-XX-P06101進1出6045.2MAPH100-XX-P30101進1出300126.8
MAPH100-XX-S121進1出01265.6MAPH100-XX-S361進1出036150.2
MAPH100-XX-P0210-S101進1出21065.6MAPH100-XX-P0610-S301進1出630150.2
MAPH100-XX-P0310-S091進1出3965.6MAPH100-XX-P1210-S241進1出1224150.2
MAPH100-XX-P0610-S061進1出6665.6MAPH100-XX-P36101進1出360150.2
MAPH100-XX-P0810-S041進1出8465.6MAPH100-XX-S421進1出042170.6
MAPH100-XX-P1010-S021進1出10265.6MAPH100-XX-P0610-S361進1出636170.6
MAPH100-XX-P12101進1出12065.6MAPH100-XX-P1210-S301進1出1230170.6
MAPH100-XX-S181進1出01886MAPH100-XX-P42101進1出420170.6
MAPH100-XX-P0210-S161進1出21686MAPH100-XX-S481進1出048193.2
MAPH100-XX-P0410-S141進1出41486MAPH100-XX-P0610-S421進1出642193.2
MAPH100-XX-P0610-S121進1出61286MAPH100-XX-P1210-S361進1出1236193.2
MAPH100-XX-P0810-S101進1出81086MAPH100-XX-P1810-S301進1出1830193.2
MAPH100-XX-P1010-S081進1出10886MAPH100-XX-P2410-S241進1出2424193.2
MAPH100-XX-P1210-S061進1出12686MAPH100-XX-P48101進1出480193.2
MAPH100-XX-P1410-S041進1出14486MAPH100-XX-S601進1出060234
MAPH100-XX-P1610-S021進1出16286MAPH100-XX-P0610-S541進1出654234
MAPH100-XX-S241進1出024106.4MAPH100-XX-P0910-S511進1出951234
MAPH100-XX-P0410-S201進1出420106.4MAPH100-XX-P1210-S481進1出1248234
MAPH100-XX-P0610-S181進1出618106.4MAPH100-XX-P2410-S361進1出2436234
MAPH100-XX-P1210-S121進1出1212106.4MAPH100-XX-S721進1出072277.8
MAPH100-XX-P1810-S061進1出186106.4MAPH100-XX-P1210-S601進1出1260277.8
MAPH100-XX-P24101進1出240106.4MAPH100-XX-P2410-S481進1出2448277.8
MAPH100-XX-S301進1出030126.8MAPH100-XX-P3610-S361進1出3636277.8
MAPH100-XX-P0610-S241進1出624126.8

注：10A和信號(5A) 可以任意組合，最大可到96路，詳細請咨詢客服。可在標準產品上進行非標定制，請咨詢客服。

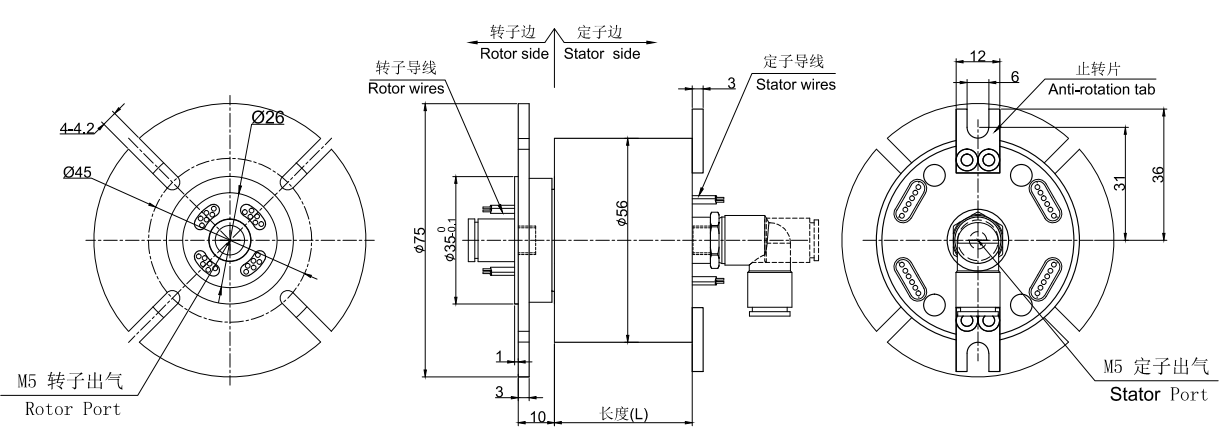

MAPH100-01 尺寸圖

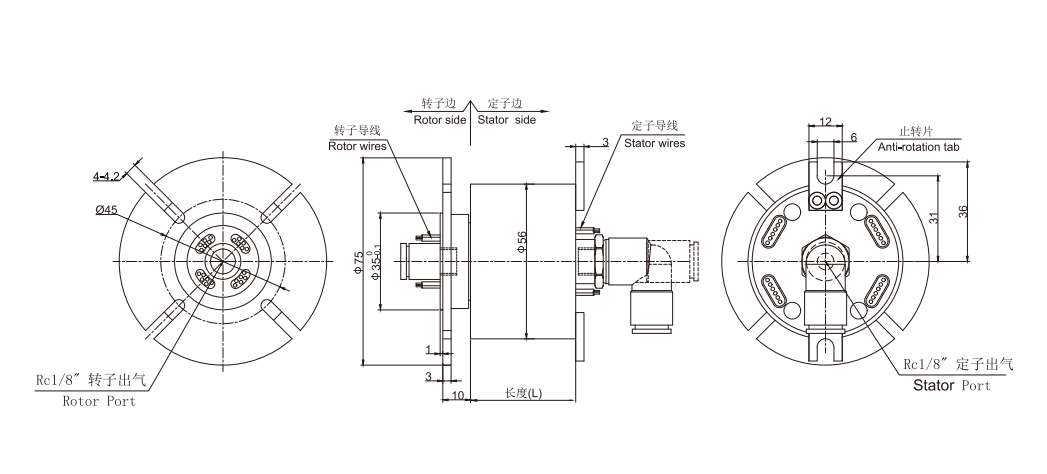

MAPH100-02 尺寸圖

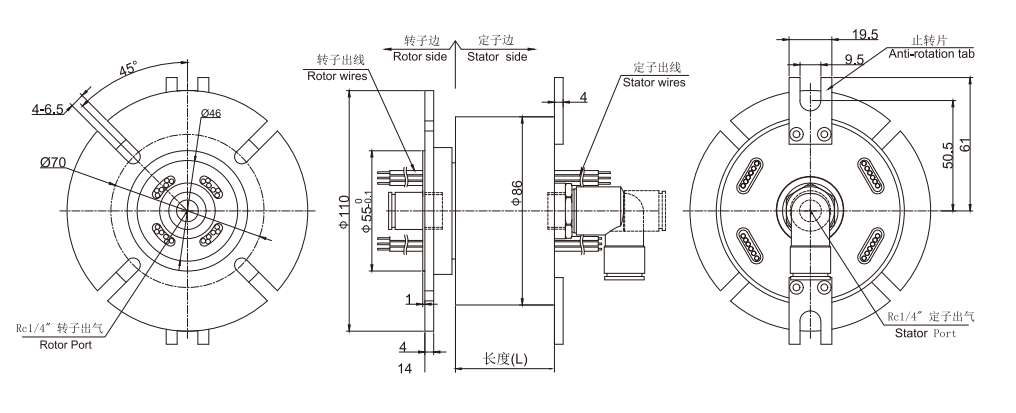

MAPH100-03 尺寸圖

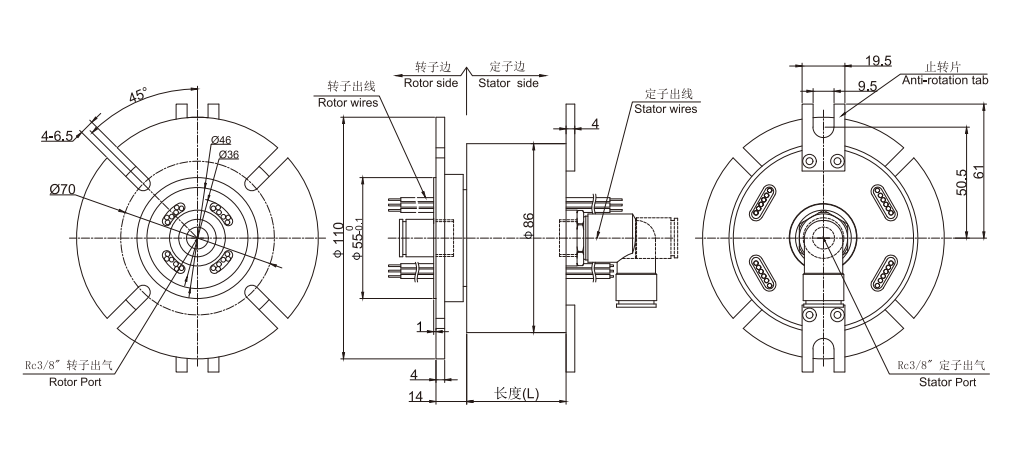

MAPH100-04 尺寸圖

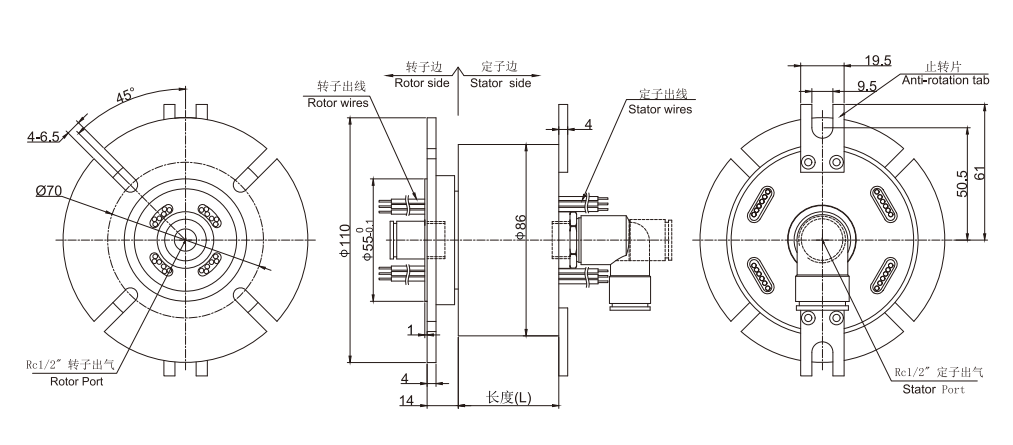

MAPH100-05 尺寸圖


同系列更多產品參考：
獲取產品3D圖紙
X

經過多年的經驗積累，默孚龍擁有20萬多個產品3D圖檔數據庫，
由于互聯網的開放性和同行競爭，需要產品3D圖檔的客戶請留下電子郵箱或者QQ。

審核完聯系方式后，我們的系統將在5分鐘內把3D自動發動到您的電子郵箱！
